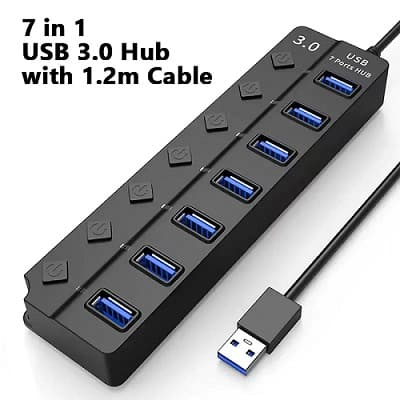

1.USB Hubs: Expanding Connectivity Through a Single Port
A USB hub is a device that expands one USB port into multiple ports, allowing several peripherals to connect to a computer simultaneously. It acts as a central point for keyboards, mice, printers, storage devices, and other accessories, making it essential for modern computing where devices often outnumber available ports.
2.Historical Background
- 1995: USB standard introduced by Intel and partner companies to unify peripheral connections.
- Late 1990s: First USB hubs appeared, supporting USB 1.1 speeds (12 Mbps).
- 2000s: USB 2.0 hubs became common, offering faster transfer rates (480 Mbps).
- 2010s–Present: USB 3.0/3.1/3.2 hubs and USB-C hubs dominate, supporting gigabit speeds and power delivery.
3.Architecture and Features
USB hubs vary in design but share common elements:
- Ports: Multiple USB-A or USB-C connectors.
- Controller Chip: Manages data traffic between devices and the host computer.
- Power Source: Bus-powered (draws power from computer) or self-powered (external adapter).
- Compatibility: Works with a wide range of peripherals.
- Form Factor: Compact portable hubs or larger docking stations.
- Additional Functions: Some hubs include card readers, HDMI, Ethernet, or audio ports.
4.Types of USB Hubs
| Type | Description |
|---|---|
| Bus-Powered Hub | Draws power directly from the computer; portable but limited for high-power devices. |
| Self-Powered Hub | Uses external power adapter; supports multiple high-power peripherals. |
| USB 2.0 Hub | Standard hubs with 480 Mbps transfer speed; still common for basic devices. |
| USB 3.0/3.1 Hub | High-speed hubs with up to 5–10 Gbps transfer rates. |
| USB-C Hub | Modern hubs with reversible connector, often including HDMI, Ethernet, and PD charging. |
| Docking Station | Advanced hubs designed for laptops, combining multiple ports and charging. |
